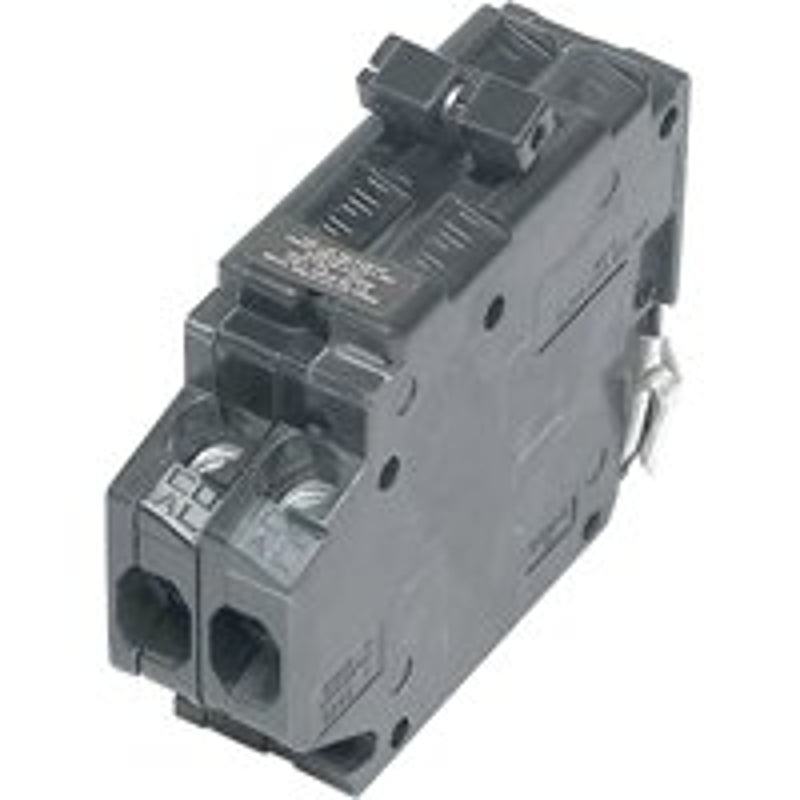

Challenger UBITBA230 Circuit Breaker, Type UBITBA, 30 A, 2-Pole, 120/240 V, Standard Trip, Plug Mounting, Black

This Challenger type A breaker replacement is designed to be compatible with Challenger panels. It has a 1 in body, two-pole and is rated for 10 kAIC, 30 A and 120/240 V. Each breaker is newly manufactured to provide great protection against over-current and short-circuit conditions.
Unit: EA
UPC: 094925019131
Model Number: UBITB-A230

• Actuator Type: Toggle
• Color: Black
• Current Rating: 30 A
• Dimensions: 3.63 in L x 1 in W x 2.5 in H
• Interrupt Rating: 10 kA
• Mounting Type: Plug
• Number of Phases: 1
• Number of Poles: 2
• Operating Frequency: 50/60 Hz
• Operating Temperature: 0 to 250 deg F
• Suitable for: Thomas and Betts Challenger Load Centers
• Terminal Type: Lug
• Trip Type: Standard
• Type: Type UBITBA
• Voltage Rating: 120/240 V
• Wattage Rating: 120/240 VAC
• Wire Size: 14 to 4 AWG
