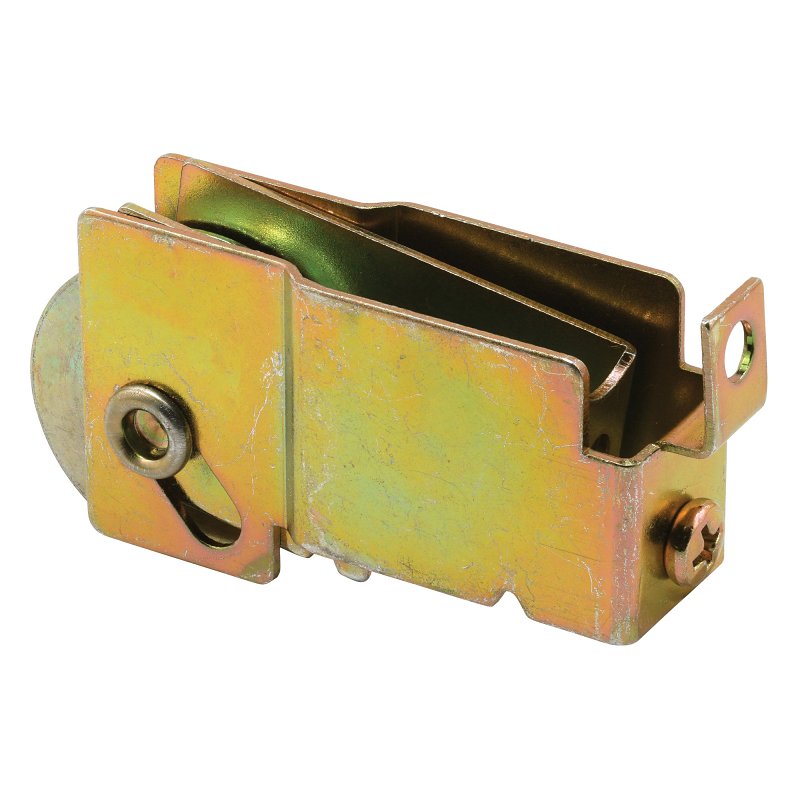

Prime-Line D 1515 Roller Assembly, 1-1/4 in Dia Roller, 5/16 in W Roller, Steel, 1-Roller, F-Tab Mounting

This is an F-tab patio door roller assembly with a 1-1/4 in concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two-sides together. The housing is 3/4 in W and 1-1/8 in H with a rear adjusting screw. Used by Christian Porter, Full view and a variety of other patio door manufacturers.
Unit: CD
UPC: 049793015150
Model Number: D1515

• Bearing Type: Ball

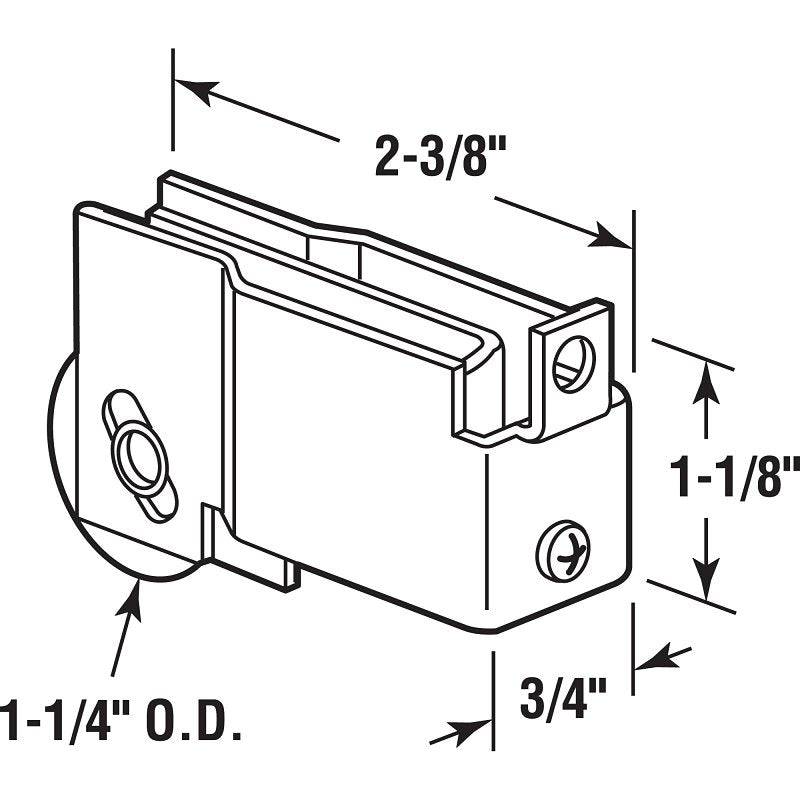

• Dimensions: 2-3/8 in L x 3/4 in W x 1-1/8 in H
• Finish: Bronze
• Includes: Roller Assembly
• Material: Steel
• Mounting Type: F-Tab
• Number of Rollers: 1
• Roller Diameter: 1-1/4 in
• Roller Edge Type: Concave
• Roller Width: 5/16 in
• Suitable for: Christian Porter Fullview and Other Glass Doors
