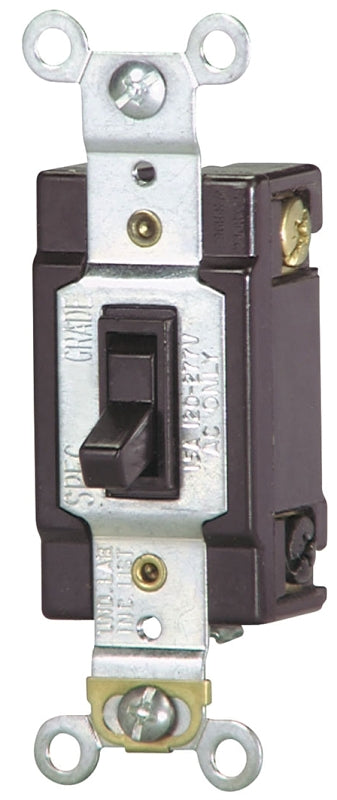

Eaton WD1242-7B-BOX Toggle Switch, 15 A, 120 V, 4-Way, Push-In Terminal, Polycarbonate Housing Material, Brown

Longer, wider strap on toggle switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job-site breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.
Unit: EA
UPC: 032664734960
Model Number: 1242-7B-BOX

• Actuator Type: Cam
• Color: Brown
• Current Rating: 15 A
• Dielectric Strength: 1500 V
• Dimensions: 4.19 in L x 1.3 in W x 0.88 D
• Housing Material: Polycarbonate
• Mounting Type: Wall
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Push-In
• Voltage Rating: 120 V
• Wattage Rating: 0.5 hp
